Residential Energy Storage System
The Residential Energy Storage System developed by our company are mainly divided into wall-mounted energy storage systems and stacked energy storage systems, which can meet customer customization and cost-effective needs. At present, the installation of Residential Energy Storage System has positive significance for energy management and environmental protection. It can not only provide reliable energy backup and peak shaving capabilities for families, but also contribute to environmental protection.
Send Inquiry
Product Description

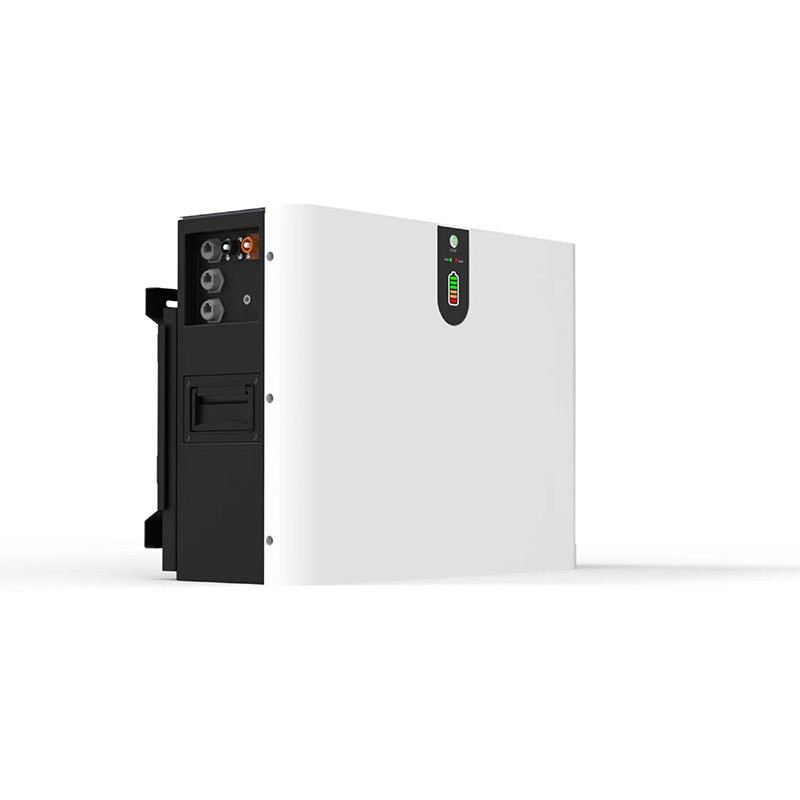

Stackable Residential Energy Storage System: Each individual stackable module boasts a remarkable capacity of up to 5000Wh.Wall-Mounted Residential Energy Storage System: The wall-mounted configuration offers a power capacity of 5120Wh, combining performance and space-saving design.
Product parameters：
Stackable Residential Energy Storage System parameters
|
Product model |
TFL-S2 |
TFL-S3 |
TFL-S4 |
|||||||||
|
32AH |
40AH |
50AH |
100AH |
32AH |
40AH |
50AH |
100AH |
32AH |
40AH |
50AH |
100 AH |
|
|
Battery type |
LI |
|
LI |
二P |
LI |
-P |
||||||
|
Rated Energy (KWH) |
6.56 |
8.2 |
12.24 |
10.24 |
9.84 |
12.3 |
15.36 |
15.36 |
13.12 |
18.4 |
20.8 |
20.48 |
|
Recommended maximum energy use (KWH) |
5.6 |
7 |
10.4 |
8.7 |
8.3 |
10.45 |
13 |
13 |
11.15 |
15.6 |
17.7 |
17.4 |
|
Rated voltage (V) |
204.8 |
204.8 |
204.8 |
102.4 |
307.2 |
307.2 |
307.2 |
153.6 |
409.6 |
409.6 |
409.6 |
204.8 |
|
Voltage range (V) |
172.8~233.6 |
172.8~233.6 |
1728s233.6 |
86.4~116.8 |
259.2750.4 |
259.2-350.4 |
259.2750.4 |
129.6-175.2 |
345.6-467.2 |
345.6-467.2 |
345.6〜467.2 |
172.8-233.6 |
|
Maximum charge and discharge current (A) |
16 |
20 |
25 |
50 |
16 |
20 |
25 |
50 |
16 |
20 |
25 |
50 |
|
Maximum charge and discharge power (KW) |
3.28 |
4.1 |
5.12 |
5.12 |
4.92 |
6.1 |
7.68 |
7.68 |
6.56 |
8.2 |
10.24 |
10.24 |
|
Battery status |
4*LED(25%、50%、75%、100%) |
4*LED(25%、50%、75%、100%) |
4*LED(25%、50%、75%、100%) |
|||||||||
|
Situation display |
2 * LED (works、alarm) |
2*LED (works、alarm) |
2*LED (works、alarm) |
|||||||||
|
Communication mode |
CAN/485 |
CAN/485 |
CAN/485 |
|||||||||
|
Operating temperature: (℃) |
-10℃ ~+50°C |
-10℃ ~+50°C |
-10℃ ~+50°C |
-20℃ ~+50°C |
-10℃ ~+50°C |
-10℃ ~+50°C |
-10℃ ~+50°C |
-20℃〜+50°C |
-10℃ ~+50°C |
-10℃ ~+50°C |
-10℃ ~+50°C |
-20℃ ~+50°C |
|
Working Humidity (RH) |
5-95% |
5-95% |
5-95% |
|||||||||
|
Working altitude (m) |
2000 |
2000 |
2000 |
|||||||||
|
Levels of protection |
IP54 |
IP54 |
IP54 |
|||||||||
|
Cycle index |
>3000 (70%EOL) |
|
|
|
|
|
|
|
|
|
|
|
|
Dimensions (W * H * Dmm) |
660*400*525 |
700*600*350 |
700*600*350 |
700*600*350 |
660*400*700 |
700*800*350 |
700*800*350 |
700*600*350 |
660*400*875 |
700*1000*350 |
700*1000*350 |
700*600*350 |
|
Weight (kg) |
75 |
45 |
45 |
115 |
110 |
90 |
90 |
165 |
145 |
135 |
135 |
215 |
|
Certification |
IEC62619/IEC60730/EN61000/UN3 8.3 |
IEC62619/IEC60730/EN61000/UN38.3 |
IEC62619/IEC60730/EN61000/UN38.3 |
|||||||||
|
Early warning |
Over charge, over discharge, over cunent, over temperature, short circuit |
Over charge, over discharge, over cunent, over temperature, short circuit |
Over charge, over discharge, over cunent, over temperature, short circuit |
|||||||||
Wall-Mounted Residential Energy Storage System parameters
|
Product model |
TFL-100-H |
|
Battery type |
LFP |
|
Rated Energy (KWH) |
5.12 |
|
Recommended maximum energy use (KWH) |
4.3 |
|
Rated voltage (V) |
51.2 |
|
Voltage range (V) |
45.2-58.4 |
|
Maximum charge and discharge current (A) |
50 |
|
Maximum charge and discharge power (KW) |
2.56 |
|
Battery status |
4*LED(25%、50%、75%、100%) |
|
Situation display |
2 * LED (works、alarm) |
|
Communication mode |
CAN/485 |
|
Operating temperature: (℃) |
-10℃-+50℃ |
|
Working Humidity (RH) |
5-95% |
|
Working altitude (m) |
2000 |
|
Levels of protection |
IP54 |
|
Cycle index |
>3000 (70%EOL) |
|
Dimensions (W * H * Dmm) |
660*400*350 |
|
Weight (kg) |
50 |
|
Certification |
IEC62619/IEC60730/EN61000/UN3 8.3 |
|
Early warning |
Over charge, over discharge, over cunent, over temperature, short circuit |
Core Features:
Stackable Residential Energy Storage System Design, Easy Installation.
Wall-mounted version offers deep customization with an ultra-slim profile.
Automatic Under-Voltage Restart: Enjoy uninterrupted power with the system's under-voltage automatic restart feature.
Remote Diagnostics and Software Design: Benefit from remote diagnostics and advanced software for seamless management and optimization.
Real-Time Data Monitoring: Keep track of your energy usage through real-time monitoring, allowing you to make informed decisions.
Project Safety Technology: Our system is equipped with advanced safety features to ensure the security of your energy setup.
Safety Technology:
We use Automotive-Grade Lithium Iron Phosphate Battery in our Residential Energy Storage System. In addition, we also use cutting-edge battery safety management and packaging technology in production.Global Safety Certifications: Our system is backed by multiple international safety certifications, including CE, UL, UN38.5, and ROHS.
Product Upgrades:
Modular Flexibility: The stackable configuration now supports flexible combinations of 2 to 5 modules, offering expanded capacity options.Intelligent Design: For Easy Installation and Maintenance. Our Residential Energy Storage System's intelligent design streamlines installation and maintenance procedures.1C Charge/Discharge Rate: Achieve over 80%+ EOL efficiency, ensuring optimal energy utilization.Compatibility with Various Inverter Brands: Our system seamlessly integrates with multiple inverter brands, enhancing adaptability.
Production and Manufacturing:
Backed by Established Manufacturers: Our system is crafted with the expertise of traditional industry giants, ensuring stability and quality.Professional R&D Team: Our dedicated research and development team empowers us to deliver continuous and swift iterations.After-Sales Assurance:We stand behind our product with a comprehensive 5-year warranty, ensuring your investment is protected.
Experience the future of home energy management with the Residential Energy Storage System. Unlock sustainability, reliability, and innovation, powering your home with efficiency and care. For manufacturers, suppliers, wholesale pricing, high-quality options, and more, the Residential Energy Storage System is your ultimate choice.
